RelayPro

The RelayPro relay server is a specialized, authenticated proxy server designed to provide secure connections between XDR Forensics Responders and the XDR Forensics console. It acts as an intermediary relay that validates every Responder connection and securely forwards traffic to the XDR Forensics console. RelayPro is purpose-built for XDR Forensics and is not intended for general proxy use cases.

Unlike the deprecated Relay Server, RelayPro does not require a Responder to be installed on the same machine. This separation reduces the overall attack surface and aligns with modern zero-trust and least-privilege design principles.

All Responder connections use HTTPS for secure communication and must complete a two-step authentication flow:

1. Initial authentication — the Responder authenticates with RelayPro using JWT credentials.
2. Secure forwarding — RelayPro validates the token and forwards authorized requests to the XDR Forensics console only when the target address and port are allowed.

This flow ensures only authorized Responders can establish connections to the XDR Forensics console.

• Unique authentication — each Responder receives its own time-limited JWT tokens
• Enhanced encryption — token encryption keys are derived uniquely per Responder
• Zero persistence — encryption keys are not shared between Responders or stored permanently
• Resilient design — if RelayPro restarts, existing valid tokens remain functional
• Modern JSON logging — logs are stored locally on the RelayPro server (not retrievable remotely)

RelayPro uses the same network ports as Responders connecting directly to the XDR Forensics console:

• 443 (HTTPS) — required
• 80 (HTTP) — optional, used only for HTTP reachability tests when HTTPS is unavailable
• 4222 (NATS) — optional, used when NATS is enabled in the XDR Forensics console

• Independent deployment — no Responder required on the RelayPro host
• Enhanced security — HTTPS + JWT authentication instead of SOCKS5 without authentication
• Manual management — installation/upgrade/uninstallation are attended by admins
• Logging changes — local-only JSON logs; remote log fetch is not supported
• Configuration flexibility — more adjustable configuration options

1. In the XDR Forensics console, go to Organization Settings → Relay Server.
2. Select New Relay.
3. Choose New RelayPro.
4. Download the package for your platform/architecture.

RelayPro is available as .deb and .rpm packages.

• Linux only (currently supported)
• Architecture: amd64 (x86_64) or arm64 (aarch64)
• Linux Kernel: 3.9 or later
• systemd: 231 or later
• Responder version: 2.79 or later

Standard, up-to-date Linux distributions typically meet these requirements.

RelayPro uses environment variables during installation to register with the XDR Forensics console. Always set them first and use sudo -E to preserve the environment.

export  AIR_CONSOLE_ADDRESS=your-console-address
export  AIR_ORGANIZATION_ID=your-organization-id
export  AIR_DEPLOYMENT_TOKEN=your-deployment-token

For .deb packages:

sudo  -E  dpkg  -i  ./binalyze-air-relaypro_<VERSION>_<ARCH>.deb

For .rpm packages:

sudo  -E  dnf  install  -y  ./binalyze-air-relaypro_<VERSION>_<ARCH>.rpm

Example:

export  AIR_CONSOLE_ADDRESS=192.168.1.100
export  AIR_ORGANIZATION_ID=0
export  AIR_DEPLOYMENT_TOKEN=1234567890abcdef
sudo  -E  dpkg  -i  ./binalyze-air-relaypro_1.0.0_amd64.deb

• Package name: binalyze-air-relaypro
• Service name: binalyze-air-relaypro.service (systemd)
• Installation directory: /opt/binalyze/air/relaypro

The installation directory includes the RelayPro binary, logs, and a configuration file. Logging is enabled by default and is fully configurable.

After installation and service start, RelayPro registers with the XDR Forensics console. On success, it updates /opt/binalyze/air/relaypro/config.yml with:

• relayId
• registeredTo
• securityToken

You can verify status in:

• Config file: /opt/binalyze/air/relaypro/config.yml
• XDR Forensics console: Organization Settings → Relay Server

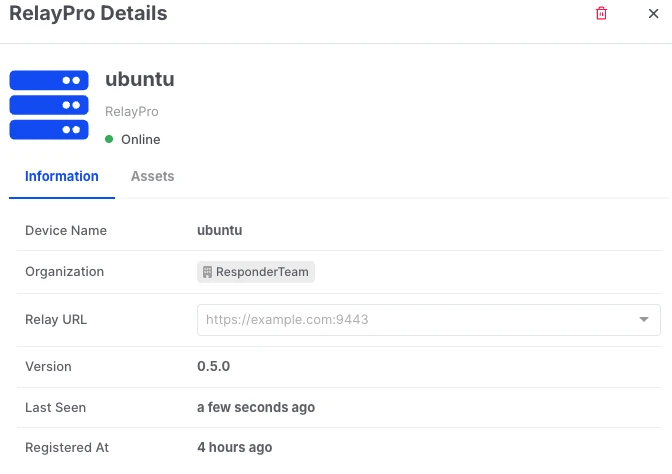

1. Go to Organization Settings → Relay Server.
2. Click the RelayPro Name to open its details.
3. Enter the Relay URL and save.

The Relay URL must include the port, for example:

If you use an intermediate proxy or load balancer, set the Relay URL to the first hop your Responders connect to:

The Relay URL is the advertised URL of RelayPro and is what Responders will use to connect.

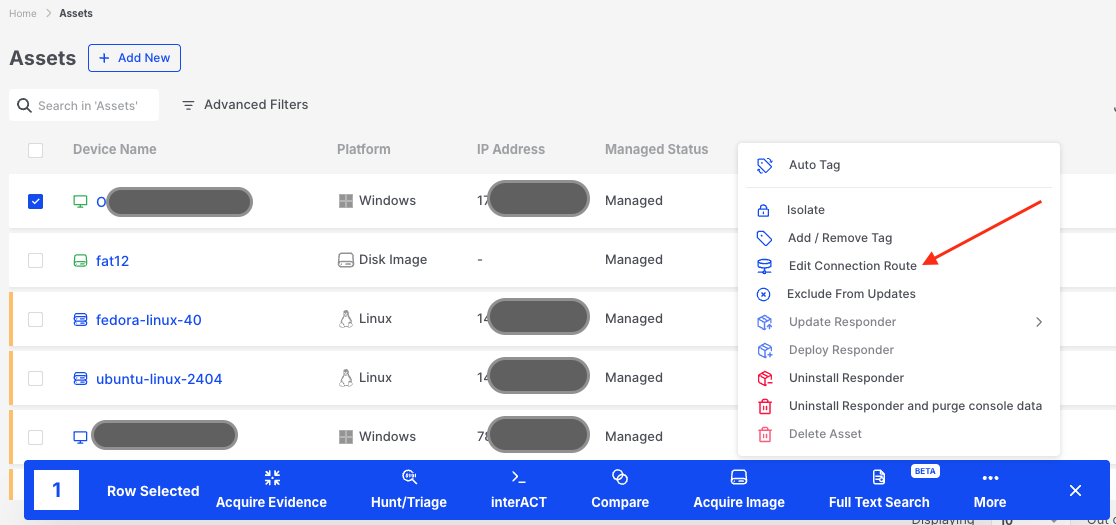

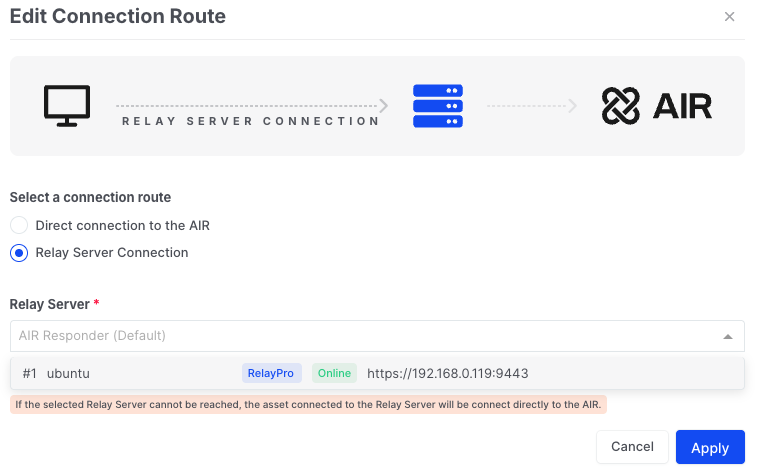

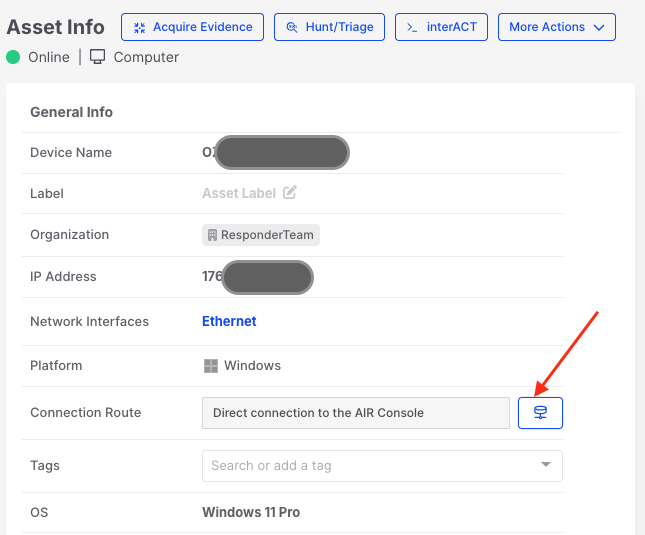

When a RelayPro is registered and its Relay URL is set, it becomes available in Connection Route settings.

If a Responder is switched to Direct Connection to the XDR Forensics console after previously using RelayPro:

• The Responder will attempt direct connection first.
• If direct connection fails, it will continue to use RelayPro while periodically re-checking direct availability.
• Once direct connection succeeds, the Responder stops using RelayPro.

RelayPro runs as a systemd service and operates as a non-root user air-relaypro. The user and group are created automatically during installation.

sudo  systemctl  stop  binalyze-air-relaypro
sudo  systemctl  start  binalyze-air-relaypro
sudo  systemctl  restart  binalyze-air-relaypro
sudo  systemctl  status  binalyze-air-relaypro
sudo  systemctl  reload  binalyze-air-relaypro

If you uninstall RelayPro, remove the air-relaypro user and group manually afterward.

RelayPro configuration is stored in:

Normally, you should not edit this file manually. Common reasons to update it include:

• Changing HTTPS proxy listener address/port
• Adjusting log file locations or rotation settings
• Changing CA certificate file or private file locations
• Manually configuring console addresses for migration

RelayPro merges logger configuration from the config file and the environment variable. The environment variable has higher priority.

Changes requiring service restart:

• privateFolder
• serverName
• httpsProxy
• logger

Changes applied on reload:

• consoleAddress
• registeredTo
• relayProId
• securityToken
• relayId
• debugLogging
• proxyEnabled
• consoleCACert
• clientAuthToken
• migration

RelayPro includes a built-in HTTPS proxy server. It is enabled by default and listens on 0.0.0.0:9443.

Example configuration:

Set the Relay URL in the XDR Forensics console to match the advertised address and port:

If you use an intermediate proxy or load balancer, set the Relay URL to that external endpoint:

• RELAYPRO_HTTPS_LISTEN — configure the HTTPS listener
• RELAYPRO_HTTP_LISTEN — enable an HTTP listener (disabled by default)

Password-based authentication is intended for testing. After testing, remove the password file from config/env and reload.

Example password file:

Example test request:

https_proxy=https://127.0.0.1:9443  \
curl --proxy-user  username1:password1  \
  --proxy-insecure  -k  https://your-air-console.binalyze.com/api/app/check

You can set a password file via RELAYPRO_PASSWORD_FILE without editing the config file.

RelayPro generates a CA bundle at startup if one does not exist. This bundle is used to:

• Generate TLS certificates for clients
• Derive encryption keys for JWT token protection

If the CA bundle changes, Responders will re-authenticate and update their certificates, which invalidates existing JWT token encryption. Back up the CA bundle and keep it safe.

Multiple RelayPro instances can share the same CA bundle for clustering scenarios.

You can specify the CA bundle path via:

RelayPro supports PEM-encoded certificates with RSA private keys (PKCS#1 only).

Recommended location for environment variables:

RelayPro supports standard proxy variables for RelayPro → XDR Forensics console connections:

• HTTPS_PROXY
• HTTP_PROXY
• NO_PROXY

Lowercase variants are also supported. RelayPro uses the CONNECT method when communicating via a proxy.

RelayPro has an independent release cycle (separate from Responder versioning). Upgrade only when notified by XDR Forensics release notes.

To upgrade:

1. Download the latest RelayPro package for your platform.
2. Install it using the same package manager.

During an upgrade:

• A temporary RelayPro process starts
• The old process drains existing connections
• The new process takes over
• The temporary process stops after connections close

If anything goes wrong during the update, interrupt it and restart the update process. If the issue persists, stop the RelayPro service and retry the update.

Check status and logs during the upgrade:

sudo  systemctl  status  binalyze-air-relaypro

Enable debug logging during upgrade and disable it afterward. No system reboot is required.

Before uninstalling, remove the RelayPro from the XDR Forensics console:

Organization Settings → Relay Server → Remove RelayPro

Then uninstall:

# For deb packages
sudo  apt-get  remove  binalyze-air-relaypro
# For rpm packages
sudo  dnf  erase  binalyze-air-relaypro

Cleanup remaining files and users:

sudo  rm  -rf  /opt/binalyze/air/relaypro
sudo  rm  -rf  /etc/environment.d/binalyze-air-relaypro.conf
sudo  userdel  -r  air-relaypro
sudo  groupdel  air-relaypro

When migrating, plan a staged rollout:

1. Identify target Responders.
2. Verify compatibility — Responders should run v2.74.1 or later for RelayPro compatibility.
3. Install RelayPro.
4. Configure RelayPro.
5. In the XDR Forensics console, go to Organization Settings → Relay Server, and set the Relay URL.
6. Assign one or more Responders to RelayPro.
7. Verify connectivity (may take several minutes).
8. Optional: install a new Responder via New Asset → Choose a Connection Route to validate.
9. Migrate remaining Responders.
10. Keep the legacy Relay Server available for rollback if needed.
11. If issues occur, contact Support and revert if required.

RelayPro is a distinct product and can be installed on the same machine as the legacy Relay Server.
